WIRELESS
CAMERA

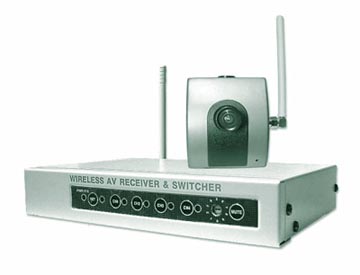

1) ADC-240WP(PAL),ADC-240WN(NTSC)-WIRELESS COLOR CAMERA.
2) ADC-240WC(CCIR),ADC-240WE(EIA)-WIRELESS B/W CAMERA
3) ADS-04RX-2.4 Ghz. WIRELESS RECEIVER
FEATURES
CAMERA
ADC-240WP/N-1/4” CCD color camera with 2.45 mm. Fixed
lens.
350 lines resolution, 290000 pixels, 2 lux illumination.
Auto electronic Shutter (AES)
Auto Gain Control (AGC)
Auto White Balance (AWB).
Built in high gain condenser microphone.
ADC-240WC/E-1/3” CCD B/W camera with 2.45 mm. Fixed
lens.
420 lines resolution,0.1 lux illumination.
Auto electronic Shutter (AES)
Auto Gain Control (AGC)
Built in high gain condenser microphone.
TRANSMITTER
2.4GHz wireless 4 channel transmitter module.
Phase Lock Loop (PLL).
3dB High Gain Antenna
.
ADS-04RX-RECEIVER
2.4GHz wireless Audio/Video receiver unit.
4 Channel A/V sequential switcher & 2 A/V outputs.
Compatible with 2.4GHz wireless camera/transmitter
module.
APPLICATION
Elevator, Small shop surveillance, Baby Monitoring
